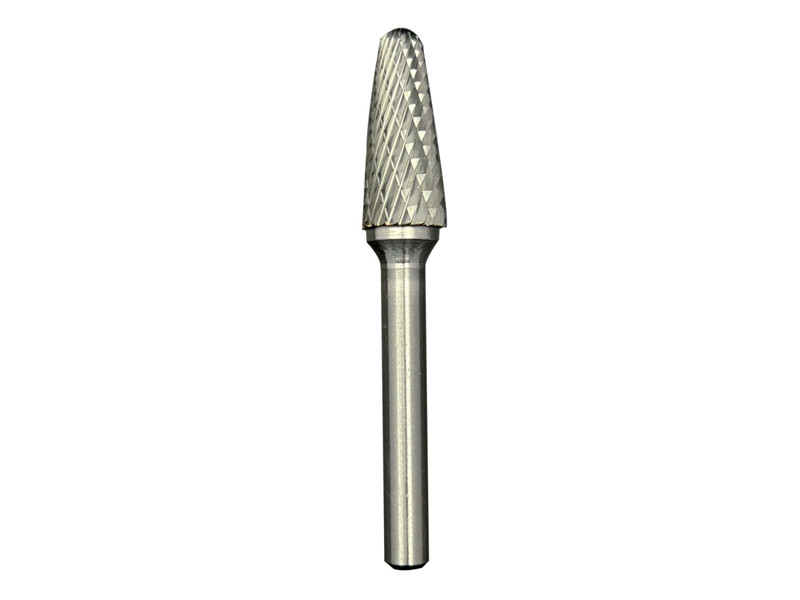

Ball Nose Cone Shape(BSL) For Narrow Contours

Ball Nose Cone Shape(BSL) For Narrow ...

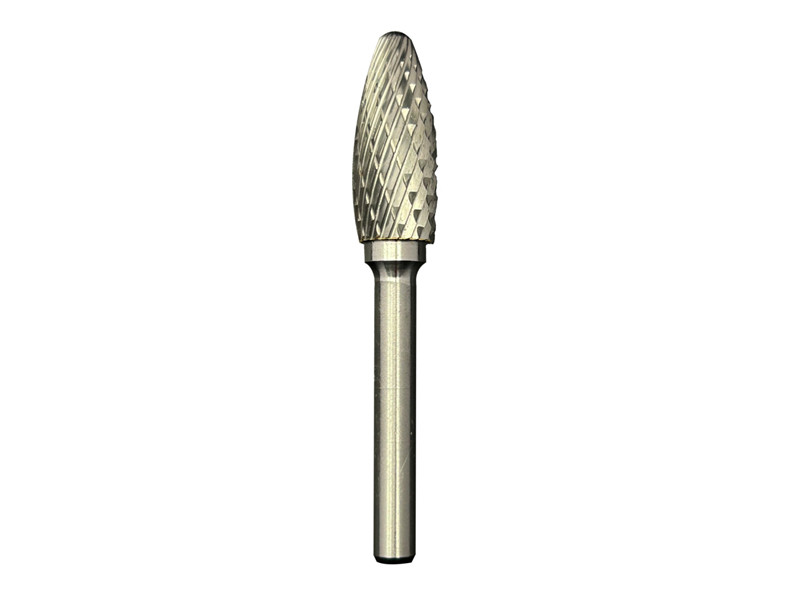

Flame Shape(BSH) For Narrow Contours

Flame Shape(BSH) For Narrow Contours

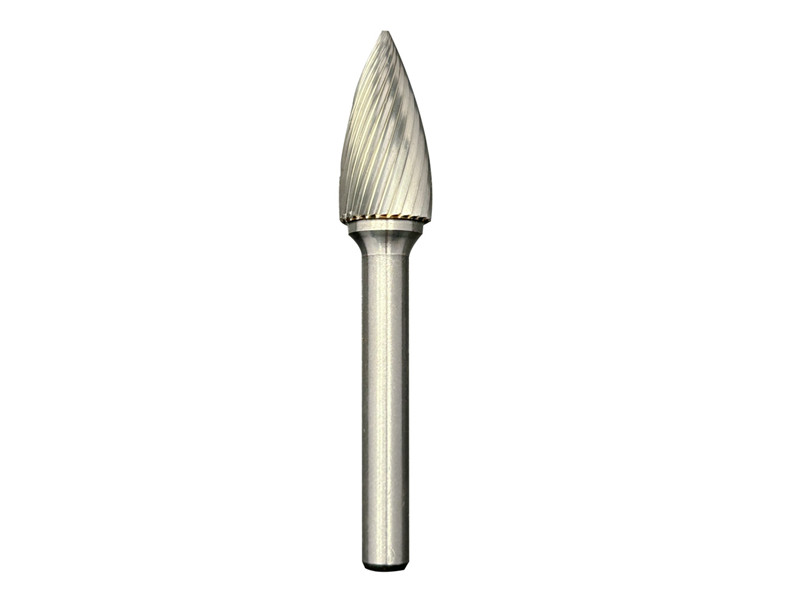

Pointed Tree Shape(BSG) For Narrow Contours

Pointed Tree Shape(BSG) For Narrow Co...

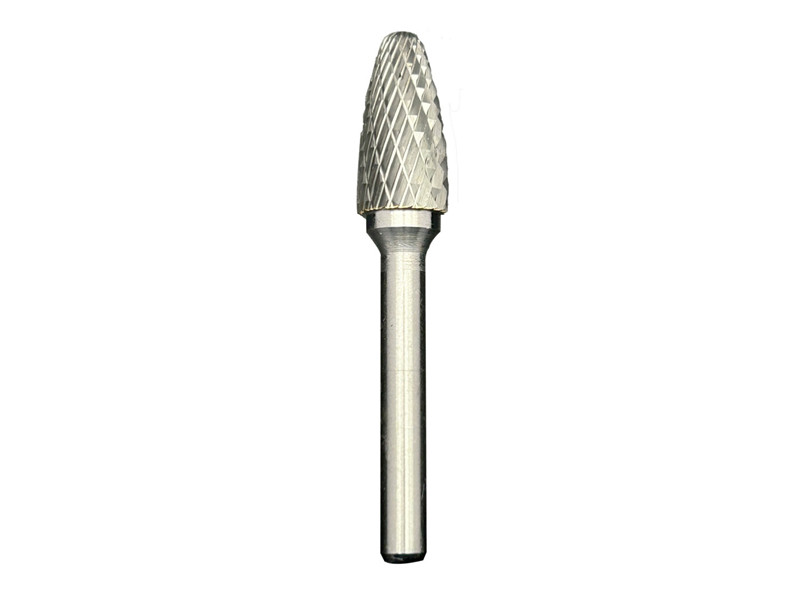

Tree Shape(BSF) For Interior Contouring

Tree Shape(BSF) For Interior Contouring

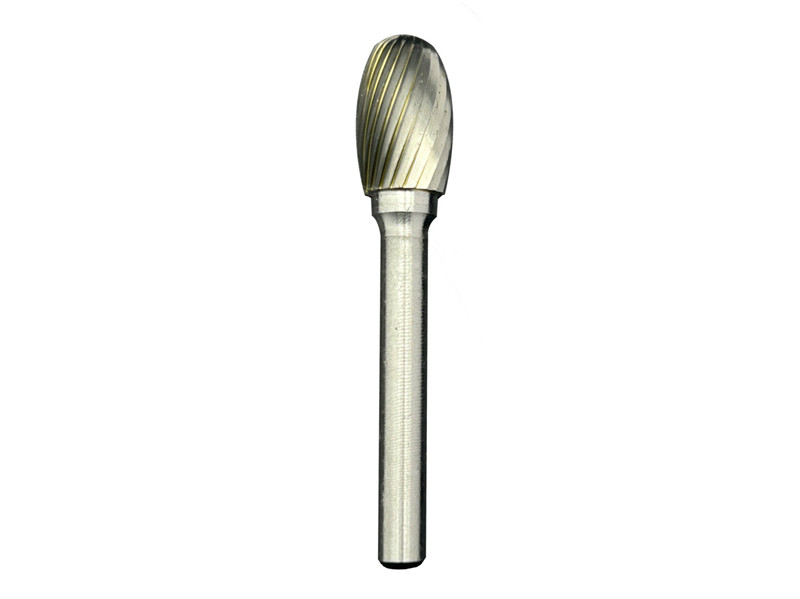

Oval Shape(BSE) For Contouring

Oval Shape(BSE) For Contouring
0102030405
330 mm H6 Polished Carbide Rods.jpg
Fully Ground Carbide Rods.jpg
Tungsten Carbide Polished Rods.jpg
End Mills Polished Carbide Rods
PCB Drill Bit Used Carbide Rods
Carbide Twist Drill Bit Polished Rods

Tungsten Carbide Rods(330mm and Cut-To-Length)

  • Diameter Range: 3mm-30mm
  • Length Range: <=330mm
  • Material Optional: 6% Co,10%Co,12%Co,(0.4~1.0 um Grain Size)
  • Surface Treatment: Unground/ground(h6,h5),With or Without Chamfer
  • Delivery Time: 3-7 Days
  • Application: End Mill,Engraver,Twist Drill Bit,PCB Micro Drill Bit,etc.
  • Contact Us: Click at the below or right for whatsapp to contact us for discounted price list. Technical Sales/Engineers are ready to serve you.
  • Other Services: Analyze base on 1)customer provided samples 2)technical properties requirement to make the same.
Contact us
product details

product description

Tungsten Carbide 330mm&Cut-to-length Unground/Ground(h6,h5)  Rods for End Mills, Solid Twist Drill Bit, PCB Drill Bit,Engraver,etc.

DIMENSION -METRIC

GROUND

28hpi

UNGROUND

290v9
Diameter Length
Range Tol. Tol.
Ø3-Ø6 +0.2/+0.4


+5.0
Ø7-Ø11 +0.2/+0.5
Ø12-Ø15 +0.3/+0.6
Ø16-Ø25 +0.3/+0.7
Ø26-Ø30 +0.4/+0.8

DIMENSION -INCH

GROUND

277bi

UNGROUND

26q1c
Diameter Length
Range Tol. Tol.
Ø1/8-Ø1/4 +0.012/+0.020

+0.2
Ø5/16-Ø7/16 +0.012/+0.024
Ø1/2-Ø11/16 +0.012/+0.028
Ø3/4-Ø1 +0.012/+0.032

MATERIAL PROPERTY


GB GRADE
CO%
WC Grain
ISO GRADE
HRA		 DENSITY TRS
FOR MAKING
FOR PROCESSING
g/cm³ N/mm²

YG6X-H
6
Ultra Micro
K05
93.2
14.88
3100		 247d PCB and COMPOSITION MATERIAL


FK30

10

Sub Micro

K20-K30

93.2

14.88

3500		 3fmz

PCB and PLASTIC PLATES


FK30U

10

Sub Micro

K20-K30

91.8

14.40

3800		 4p0v
Steel(HRC<48) Stainless Steel Grey Cast Iron Heat Resistant Alloy


FK30S

10

Ulttra Micro

K20-K30

92.8

14.35

4000		 5ogl
Steel(HRC<55) Stainless Steel Grey Cast Iron Heat Resistant Alloy


FK40S

12

Ulttra Micro

K30-K40

92.5

14.15

4200		 6dy1
Steel(HRC55-60) Stainless Steel Non-Ferrous MetaTitanium Alloy High-Temp Alloy
